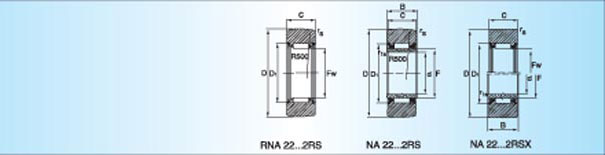

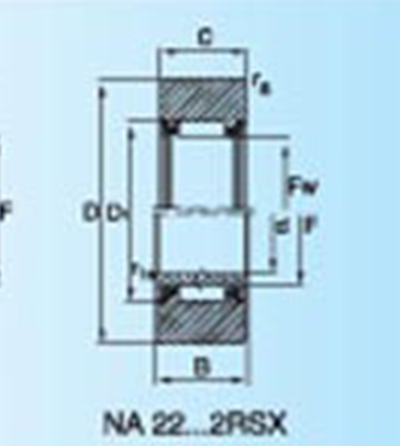

外徑 | 軸 承 型 號 | 外 形 尺 寸 | 基 本 額 定 負(fù) 荷 | 極限轉(zhuǎn)速 | ||||||||||
mm | 無內(nèi)圈 | 帶內(nèi)圈 | D | d | F/Fw | B | C | rs | r1s | 動 C | 靜 Co | 動 Cw | 靜Cow | |
19 | RNA22/6.2RS | NA22/6.2RS | 19 | 6 | 10 | 12 | 11.8 | 0.3 | 0.3 | 5300 | 4650 | 3900 | 3700 | 18000 |
RNA22/6.2RSX | NA22/6.2RSX | 19 | 6 | 10 | 12 | 11.8 | 0.3 | 0.3 | 5300 | 4650 | 3900 | 3700 | 18000 | |
24 | RNA22/8.2RS | NA22/8.2RS | 24 | 8 | 12 | 12 | 11.8 | 0.3 | 0.3 | 5700 | 5400 | 4800 | 4800 | 14000 |
RNA22/8.2RSX | NA22/8.2RSX | 24 | 8 | 12 | 12 | 11.8 | 0.3 | 0.3 | 5700 | 5400 | 4800 | 4800 | 14000 | |
30 | RNA2200.2RS | NA2200.2RS | 30 | 10 | 14 | 14 | 13.8 | 0.6 | 0.3 | 7800 | 8300 | 7000 | 8000 | 11000 |
RNA2200.2RSX | NA2200.2RSX | 30 | 10 | 14 | 14 | 13.8 | 0.6 | 0.3 | 7800 | 8300 | 7000 | 8000 | 11000 | |
32 | RNA2201.2RS | NA2201.2RS | 32 | 12 | 16 | 14 | 13.8 | 0.6 | 0.3 | 8700 | 9900 | 7500 | 9000 | 9500 |
RNA2201.2RSX | NA2201.2RSX | 32 | 12 | 16 | 14 | 13.8 | 0.6 | 0.3 | 8700 | 9900 | 7500 | 9000 | 9500 | |
35 | RNA2202.2RS | NA2202.2RS | 35 | 15 | 20 | 14 | 13.8 | 0.6 | 0.3 | 9800 | 12300 | 7600 | 9600 | 7000 |
RNA2202.2RSX | NA2202.2RSX | 35 | 15 | 20 | 14 | 13.8 | 0.6 | 0.3 | 9800 | 12300 | 7600 | 9600 | 7000 | |
40 | RNA2203.2RS | NA2203.2RS | 40 | 17 | 22 | 16 | 15.8 | 1 | 0.3 | 12200 | 16700 | 9900 | 13800 | 6000 |
RNA2203.2RSX | NA2203.2RSX | 40 | 17 | 22 | 16 | 15.8 | 1 | 0.3 | 12200 | 16700 | 9900 | 13800 | 6000 | |
47 | RNA2204.2RS | NA2204.2RS | 47 | 20 | 25 | 18 | 17.8 | 1 | 0.3 | 18900 | 22300 | 15200 | 18300 | 4600 |
RNA2204.2RSX | NA2204.2RSX | 47 | 20 | 25 | 18 | 17.8 | 1 | 0.3 | 18900 | 22300 | 15200 | 18300 | 4600 | |
52 | RNA2205.2RS | NA2205.2RS | 52 | 25 | 30 | 18 | 17.8 | 1 | 0.3 | 21100 | 27000 | 15700 | 20000 | 3500 |
RNA2205.2RSX | NA2205.2RSX | 52 | 25 | 30 | 18 | 17.8 | 1 | 0.3 | 21100 | 27000 | 15700 | 20000 | 3500 | |
62 | RNA2206.2RS | NA2206.2RS | 62 | 30 | 35 | 20 | 19.8 | 1 | 0.3 | 23300 | 32000 | 18300 | 25500 | 2800 |
RNA2206.2RSX | NA2206.2RSX | 62 | 30 | 35 | 20 | 19.8 | 1 | 0.3 | 23300 | 32000 | 18300 | 25500 | 2800 | |
72 | RNA2207.2RS | NA2207.2RS | 72 | 35 | 42 | 23 | 22.7 | 1.1 | 0.6 | 30000 | 46500 | 23000 | 35500 | 2200 |
RNA2207.2RSX | NA2207.2RSX | 72 | 35 | 42 | 23 | 22.7 | 1.1 | 0.6 | 30000 | 46500 | 23000 | 35500 | 2200 | |
80 | RNA2208.2RS | NA2208.2RS | 80 | 40 | 48 | 23 | 22.7 | 1.1 | 0.6 | 38500 | 58000 | 27500 | 40500 | 1700 |
RNA2208.2RSX | NA2208.2RSX | 80 | 40 | 48 | 23 | 22.7 | 1.1 | 0.6 | 38500 | 58000 | 27500 | 40500 | 1700 | |
85 | RNA2209.2RS | NA2209.2RS | 85 | 45 | 52 | 23 | 22.7 | 1.1 | 0.6 | 40500 | 64000 | 28500 | 43000 | 1600 |
RNA2209.2RSX | NA2209.2RSX | 85 | 45 | 52 | 23 | 22.7 | 1.1 | 0.6 | 40500 | 64000 | 28500 | 43000 | 1600 | |
90 | RNA2210.2RS | NA2210.2RS | 90 | 50 | 58 | 23 | 22.7 | 1.1 | 0.6 | 42500 | 70000 | 28000 | 42500 | 1300 |
RNA2210.2RSX | NA2210.2RSX | 90 | 50 | 58 | 23 | 22.7 | 1.1 | 0.6 | 42500 | 70000 | 28000 | 42500 | 1300 |
